Polygon Syntax ​

This page describes how to define polygons using Well-Known Text (WKT) format for use with the GEOGRAPHY type in Yellowbrick.

Overview ​

Yellowbrick follows the official WKT specification for polygon syntax, as defined by the OGC (Open Geospatial Consortium). A WKT POLYGON consists of an outer boundary (also called the outer ring), optionally followed by one or more inner boundaries (holes).

Coordinate Format ​

  • Coordinates are specified in longitude/latitude order, in decimal degrees.
  • Example: POINT(-122.27652 37.80574) represents a location near Oakland, California.

Polygon Orientation and Surface Area ​

Yellowbrick does not use winding direction (clockwise vs. counterclockwise) to determine which side of a polygon is considered the interior. Instead, we follow the PostGIS behavior:

The inside of a polygon is always defined as the smaller portion of the sphere's surface.

This implies:

  • A polygon may not cover more than a hemisphere.
  • Drawing the same polygon clockwise or counterclockwise will yield the same interior, provided that it's less than a hemisphere.
  • If you need to represent an area larger than a hemisphere, use a MULTIPOLYGON composed of smaller polygons.

WKT Syntax for POLYGON ​

A POLYGON is defined as a sequence of linear rings:

sql
POLYGON((
  <outer_ring_coordinates>
), (
  <hole_1_coordinates>
), (
  <hole_2_coordinates>
), ...
)
  • Each ring is a list of longitude latitude points.
  • Rings must be closed—the first and last point must be the same.
  • The first ring defines the outer boundary.
  • Additional rings define holes (excluded areas).

Example: Simple Polygon ​

sql
select
    'POLYGON((0 0, 0 1, 1 1, 1 0, 0 0))'::geography counterclockwise,
    'POLYGON((2 0, 3 0, 3 1, 2 1, 2 0))'::geography clockwise;

This defines two square from (0,0) to (1,1) and from (2,0) to (3,1). One is clockwise the other counterclockwise.

two_polygons

Example: Polygon with a Hole ​

sql
POLYGON((
  0 0, 0 10, 10 10, 10 0, 0 0          -- Outer ring
), (
  3 3, 3 7, 7 7, 7 3, 3 3              -- Hole (inner ring)
))

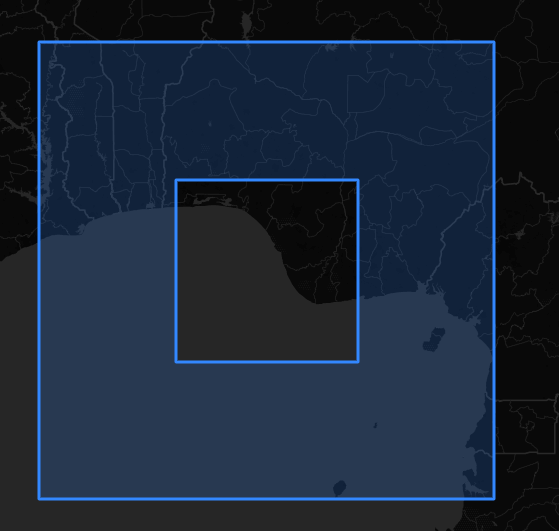

polygon_hole

This creates a 10×10 square with a 4×4 hole in the center.

WKT Syntax for MULTIPOLYGON ​

A MULTIPOLYGON allows you to represent multiple disjoint polygon shapes in a single object.

Example: Multi-region area ​

sql
MULTIPOLYGON(
  ((0 0, 0 1, 1 1, 1 0, 0 0)),         -- First polygon
  ((2 2, 2 3, 3 3, 3 2, 2 2))          -- Second polygon
)

multipolygon

Each polygon is wrapped in its own set of double parentheses. This is useful for:

  • Representing disconnected shapes.
  • Working around hemisphere limits (split a large area into smaller parts).
