LDAP Synchronization: Basic Example

This section presents a simple example of LDAP synchronization. This example uses an AD LDAP server and synchs all groups and all users that belong to the specified OU. See LDAP Sample Schema for information about the LDAP groups and users associated with this example.

1. Set up LDAP authentication as directed in one of the previous AD examples.

2. Visit the LDAP configuration user interface for your platform, and configure synchronization.

In Yellowbrick Manager, navigate to instance management for your instance, choose LDAP, choose the Synchronization tab, then select Synchronize Users/Groups. Fill out the details as shown and click Save Settings.

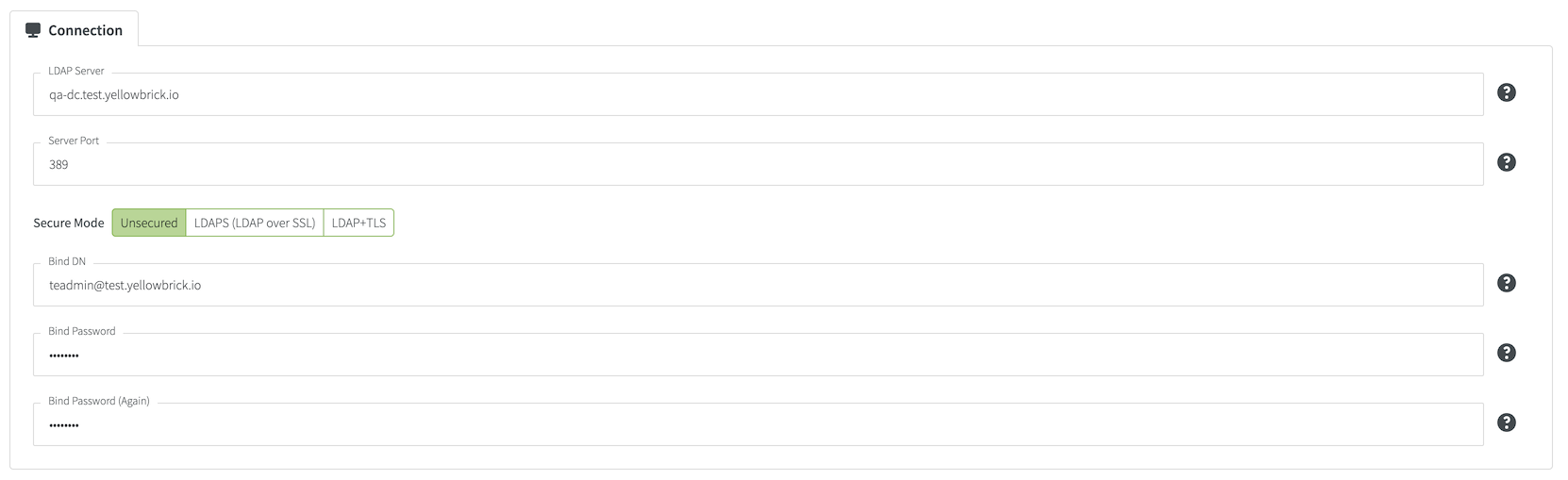

Configure Connection

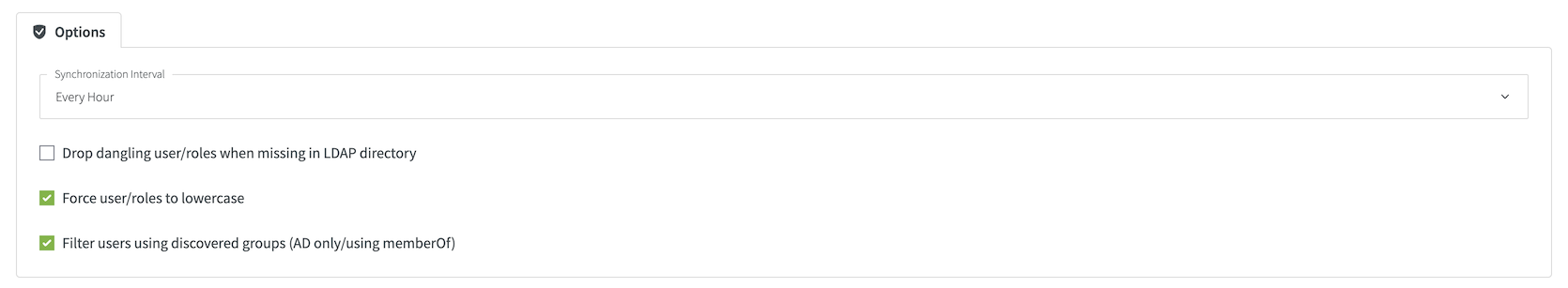

Choose Options

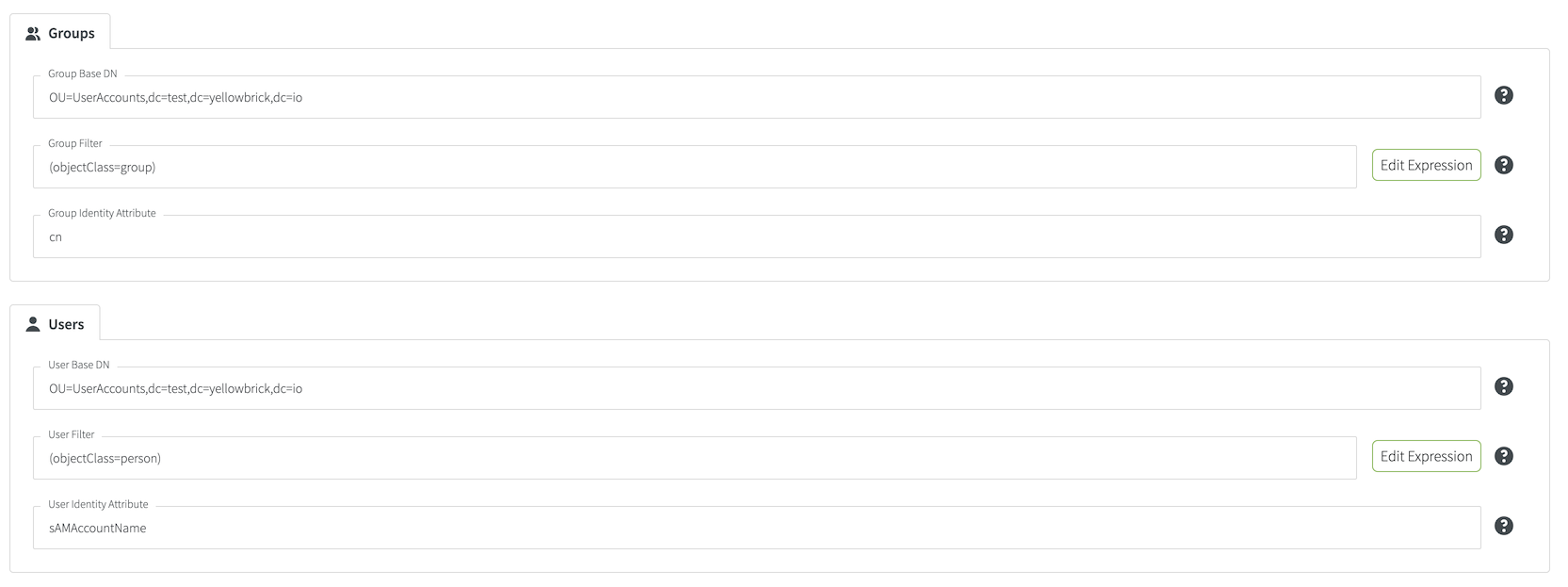

Specify Group and User Filter Criteria

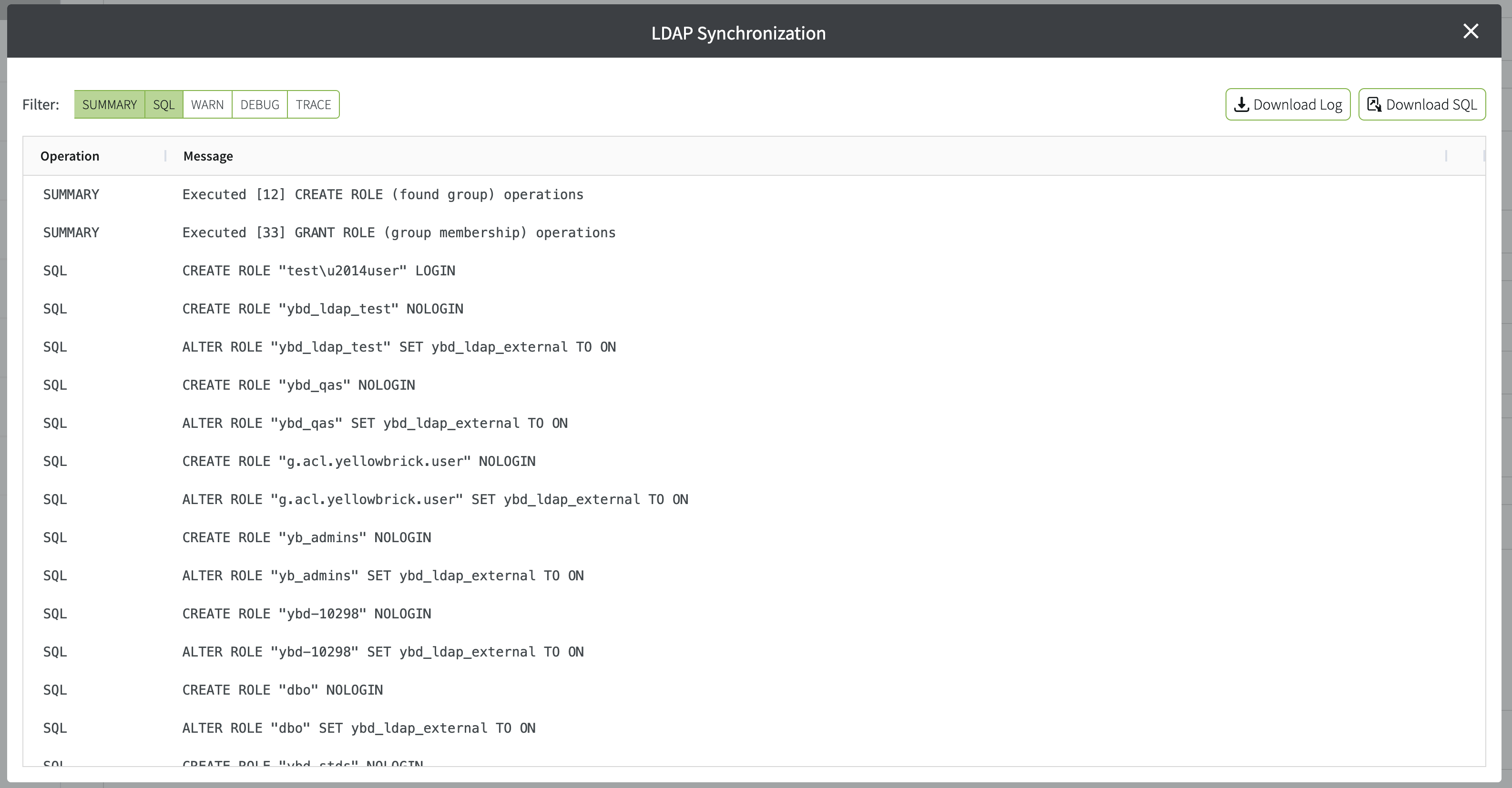

3. Click Test Synchronization Settings. A test results page is displayed.
